Overview

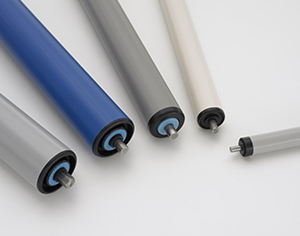

Our plastic conveyor rollers use high impact rigid PVC tubing and are a low cost alternative to stainless steel rollers.

Plastic conveyor rollers are best suited to light weight gravity conveyor applications.

Specification

Tube Size Spindle Option Capacity*
40mm x 2.3mm ø8mm & ø10mm 14kg
50mm x 2.8mm ø10mm, ø12mm, 11mm Hex 20kg

*These maximum potential capacities are for guideance only and assume an evently distributed static load.

Finish: Rollers are supplied with rigid PVC tubing and self colour, bright zinc plated or grade 303 or 316 stainless steel spindles. Suitable for wash down applications.

Spindle Conditions

Round

Round

Un-machined round spindles are suitable for double spring loaded rollers. In some cases the sideframes could be drilled as opposed to punched.

Hexagonal

Hexagonal

Extruded hexagonal spindles are suitable for punched conveyor sideframes. In most cases the spindle would be spring loaded. The hexagonal shape prevents the spindle from rotating in the side frame, it also prevents the bearing inner race from rotating on the spindle.

Drilled and Tapped

Drilled and Tapped

Both round and hexagonal spindles can be drilled and tapped at each end to enable the roller to be bolted between the conveyor sideframes, thus increasing the rigidity of the conveyor.

Milled Flats

Milled Flats

Round spindles with 2 milled flats are used in conveyors with slotted side frames where rollers are lowered into position. In most cases the spindle is supplied fixed within the roller.

Circlipped

Circlipped

External circlips can be used to captivate a spindle within a roller. This method of retention is usually found on heavy duty rollers and drums.

Threaded

Threaded

Round spindles can be threaded at either end to suit a metric or imperial nut. In most cases the spindle is supplied loose.

Drilled Spindle End

Drilled Spindle End

'Cross drilled' spindles are supplied loose and allow several rollers to be wired together in a sideframe to prevent spindle rotation and to retain the roller.

Conveyor Rollers Range

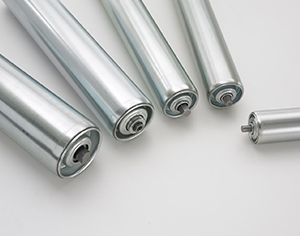

Gravity Conveyor Rollers (Heavy Duty)
Gravity Conveyor Rollers (Light-Medium Duty)
Plastic Conveyor Rollers

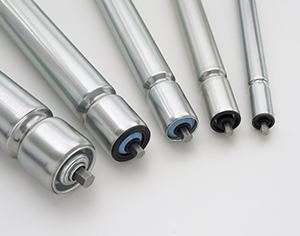

Grooved Conveyor Rollers

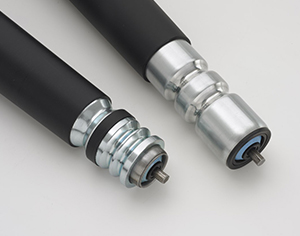

Tapered Conveyor Rollers

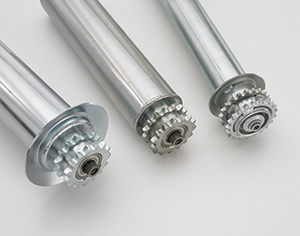

Sprocketed Conveyor Rollers

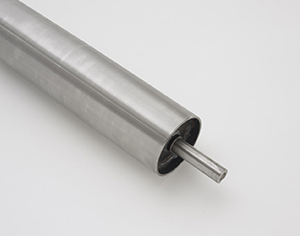

Conveyor Drum Rollers

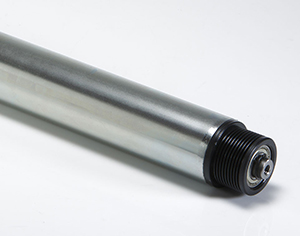

Poly V Conveyor Rollers

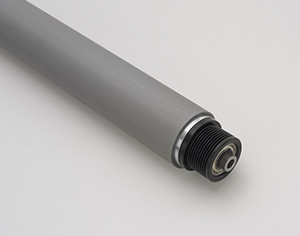

Specialised Conveyor Rollers
